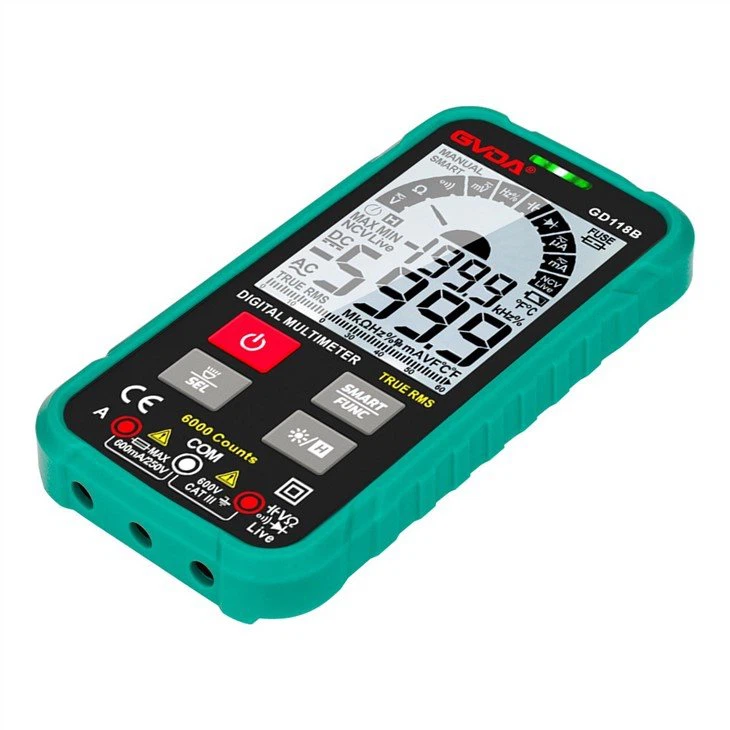

Ntse Digital Multimeter Auto True RMS

GVDA ntse digital multimeter nws pib muaj tseeb rms DMM 600V Ntse Xov Tooj Digital Ohm Capacitance Hz AC DC Voltage Tam sim no NCV Multimetro Tester

Qhov ntsuas no yog qhov ntse ntse muaj txiaj ntsig zoo multimeter. Kev txheeb xyuas cov neeg txawj ntse thiab phau ntawv ua haujlwm tau sib xyaw ua ke, uas tuaj yeem ntsuas AC thiab DC voltage, AC thiab DC tam sim no, tsis kam, capacitance, txuas ntxiv, diode, NCV, thiab lwm yam. .

Cov lus qhia kev nyab xeeb

Qhov ntsuas no ua raws li iec61010-1 thoob ntiaj teb kev nyab xeeb hluav taws xob tus qauv. Kev tsim thiab tsim cov cuab yeej yuav tsum nruj me ntsis raws li iec61010-1 CAT.III 600V kev nyab xeeb tus qauv thiab cov pa phem theem 2.

Khoom nta

1. Made of high‑quality ABS material, durable, wear‑resistant and heat‑resistant.

2. Lub vijtsam loj digital tau ntsuas yam tsis muaj phau ntawv hloov pauv, uas yooj yim thiab ceev.

3. Nruab nrog lub vijtsam teeb thiab lub teeb nyem nyob tom qab, nws tuaj yeem ntsuas tau txawm tias nyob hauv qhov tsaus ntuj. .

4. High‑accuracy multi‑function digital display, good stability, accurate test results.

5. Qhov no Digital Multimeter tuaj yeem siv los ntsuas AC / DC Voltage, AC / DC Current, Resistance, Continuity, Capacitance, Tests Diodes Transistors, NCV Live Line.

Khoom Specifications

General technical

● Environmental conditions:

CAT. III 600V;

Cov pa phem: 2

Qhov siab<>

Working temperature and humidity:040 degree （<80%><>

Storage temperature and humidity:-1060 degree （<70% rh,="" without="">

● Temperature coefficient:0.1´Accuracy / degree （<18°c or="">28 degree ）

● Maximum voltage allowed between input terminals:600V

● Current protection:F600mA/250V fuse

● Sampling: approx. 3 times / second.

● Display: maximum 6000 count.

● Over range indication: display "OL".

● Low battery: Display" ".

● Polarity indication: display "-" sign.

● Power:2 x 3V CR2032 batteries.

Qhov tseeb

Qhov tseeb yog siv tau nyob rau hauv ib xyoos tom qab calibration

Siv cov xwm txheej: ambient kub 18 degree txog 28 degree, txheeb ze av noo tsis tshaj 80 feem pua

Accuracy: ± ( percent reading plus word)

DC voltage

Input impedance:10MΩ

Qhov siab tshaj plaws voltage: 600V

AC voltage

Input impedance:10MΩ;Maximum voltage:600V

Teb zaus: 40Hz 1kHz; Muaj tseeb RMS

DC tam sim no

Kev tiv thaiv overload: F600mA / 250V Fuse; Qhov siab tshaj plaws tam sim no: 600mA

AC tam sim no

Kev tiv thaiv overload: F600mA / 250V Fuse; Qhov siab tshaj plaws tam sim no: 600mA

Teb zaus: 40Hz 1kHz; Muaj tseeb RMS

Diode txuas ntxiv

Kev tiv thaiv

Kev tiv thaiv overload: 250V

Capacitance

Kev tiv thaiv overload: 250V

Frequency/Lub luag hauj lwm

Hz / feem pua ​​Position:

1) Ntau yam: 10Hz 10MHz

2) Voltage teb: 0.510V AC

3) Kev tiv thaiv overload: 250V

ACV txoj haujlwm:

1) Ntau yam: 10Hz 2 kHz

2) Voltage teb: Ntau dua lossis sib npaug rau 0.5V AC

3) Kev tiv thaiv overload: 250V

mA lossis mA txoj haujlwm:

1) Ntau yam: 10Hz 2 kHz

2) Cov lus teb tam sim no: Ntau dua lossis sib npaug rau 2mA

3) Kev tiv thaiv overload: F600mA / 250V fuse;

Pob npe:

1 Multimeter

1 Test Lead

1 Lub Hnab Cia

1 User Manual (English)

Khoom Paub meej

Ntse digital multimeter pib tseeb rms
