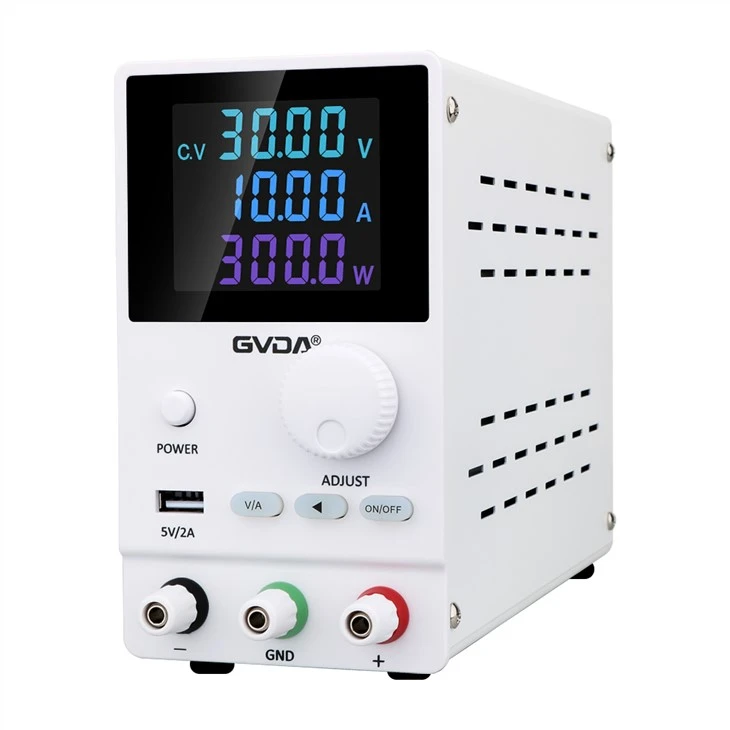

Lub rooj zaum DC Fais Fab Qhov Chaw

GVDA Tshiab USB Laboratory Hloov DC Fais Fab 30V 10A Adjustable Variable LAB Voltage Regulator Bench Source Dawb nrog Digital Xim LCD Zaub

Nta

【 Tsis siv neeg lub zog suav suav】

Sib txawv ntawm lwm cov khoom siv hluav taws xob dc, dc lub zog hluav taws xob tuaj yeem suav cov nqi hluav taws xob raws li qhov hluav taws xob thiab tam sim no, tab sis kuj tuaj yeem ua ib txhij tso saib {{0}} tus lej voltage, tam sim no thiab lub zog muaj nuj nqis, cov lej raug ntawm { {3}}.01V thiab 0.001A.

【5V / 2A USB interface】

Cov khoom siv hluav taws xob sib txawv tau tsim hauv cov txheej txheem them nqi ceev ceev uas txhawb nqa USB ceev them lub luag haujlwm, uas txawv ntawm qhov zoo tib yam USB charging interface nyob rau hauv uas nws muaj 5V / 3.6A cov zis uas tuaj yeem them sai sai rau koj lub xov tooj ntawm tes thiab lossis lwm yam khoom siv. los yog siv los them tus nqi kho mob.

【Short Circuit Alarm】

Txhawm rau txhim kho kev nyab xeeb ntawm dc fais fab mov thiab ua kom nws lub neej ua haujlwm ntev, peb tau tsim lub tswb luv luv rau dc fais fab mov. Thaum ib qho luv luv tshwm sim, qhov sib txawv ntawm DC fais fab mov yuav tso tseg thiab xa tawm lub tswb ceeb toom rau koj. Lub rooj zaum fais fab tseem muaj kev tiv thaiv kev nyab xeeb xws li overvoltage, overcurrent, overheating thiab overload.

【Wide Applications】

Cov khoom siv hluav taws xob hloov kho tau muaj cov kiv cua uas muaj peev xwm tswj tau qhov kub thiab txias txias rau cov cua kub zoo heev thiab tshwj xeeb tshaj yog tsim rau chav kuaj, kho hluav taws xob DIY, kev sib txuas lus cov khoom siv, cov khoom kab, kev tshawb fawb thiab kev qhia.

Spec. Paub meej

Lub npe: LCD Screen Stabilized Power Supply

Qauv: GD-F305C GD-F3010C GD-F605C GD-F1203C

Input voltage: 110V / 220V (yeem)

Cov zis hluav taws xob: 0 ~ 30V 60V 120V

Cov zis tam sim no: 0 ~ 5A 10A 3A

Ua haujlwm kub: 0 degree ~ 40 degree, txheeb ze av noo<>

Cia kub: -10 degree ~ 70 degree, txheeb ze av noo<>

Lub xeev siab tsis tu ncua:

1. Voltage stability: Tsawg dua los yog sib npaug rau 0.1 feem pua ​​± 3mV Tsawg voltage: 0.2 feem pua ​​-0.3 feem pua ​​ntxiv 3mV

2. Load stability: Tsawg dua los yog sib npaug rau 0.5 feem pua ​​± 3mV

3. Ripple nrov: Tsawg dua lossis sib npaug rau 30mVrms (tus nqi nruab nrab zoo)

Lub xeev tam sim no:

1. Kev ntsuas kub tam sim no: Tsawg dua lossis sib npaug rau 0.2 feem pua ​​± 3mA

2. Load stability: Tsawg dua los yog sib npaug rau 0.2 feem pua ​​± 3mA

3. Ripple nrov: Tsawg dua lossis sib npaug ntawm 20mAems (tus nqi nruab nrab zoo)

Kev pom tseeb: 0.5 feem pua ​​± 2 tus lej

Zaub daws teeb meem: Voltage: {{0}}.01V Tam sim no: 0.001A

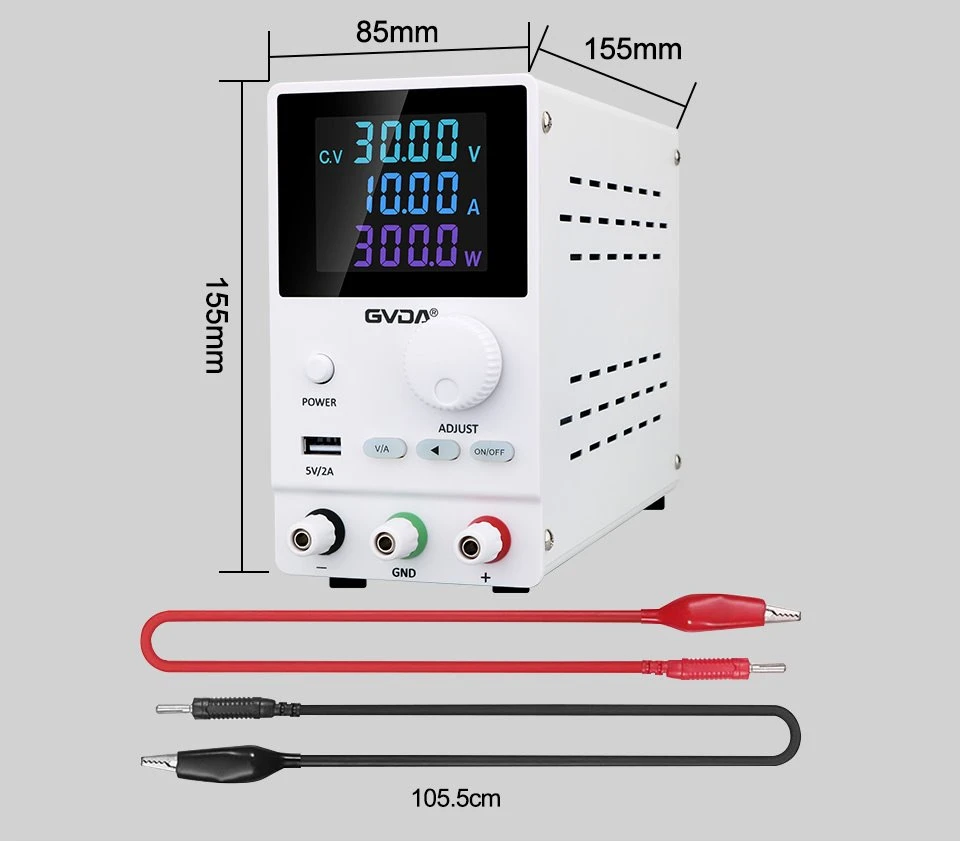

Khoom loj: 24 * 8.5 * 15.5cm

Xim: Dawb Daim Ntawv Pov Thawj: CE Phau Ntawv Qhia: Lus Askiv

Fuse specification: 3.15A (220V input) / 5A (110V input)

(Ceeb Toom: cov kev ntsuas saum toj no yog nyob ntawm qhov kub thiab txias 25 ntxiv rau 5 feem pua ​​C;

txheeb ze humidity: <80 feem pua ​​RH, thiab preheated rau 30 feeb, qhov tseeb

parameters yuav txawv me ntsis)

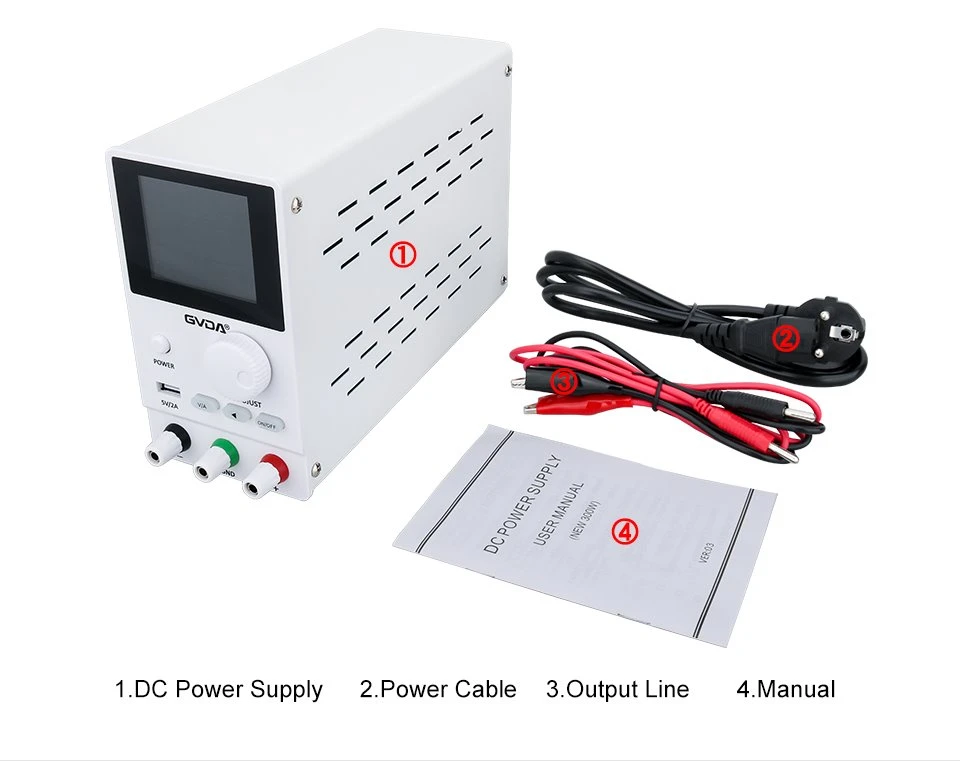

Pob Muaj xws li:

Khoom siv hluav taws xob * 1

Lub hwj chim Adapter * 1

Output Cable * 1

Phau Ntawv Qhia Lus Askiv * 1

Khoom Qhia

Lub rooj zaum DC Fais Fab Qhov Chaw

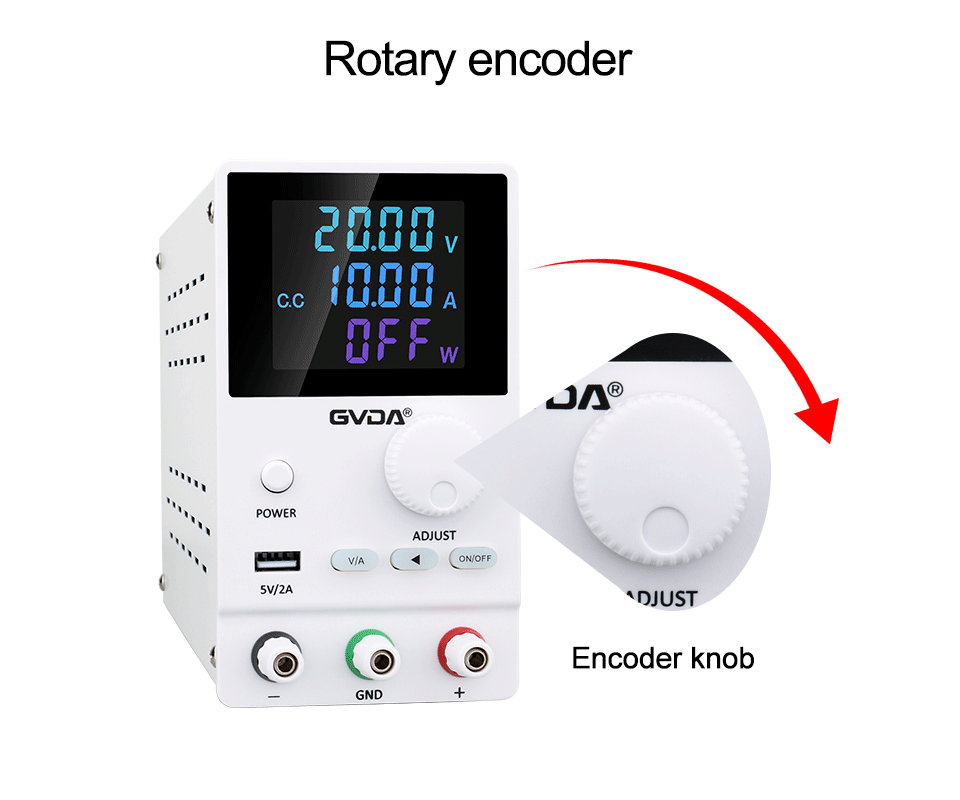

Rotary Encoder

KHOOM HAUJ LWM

1. Tshem tawm lub hwj chim thaum cov khoom siv tsis siv.

2.Unplug lub hwj huam mov ua ntej ntxuav.

3.Tsis txhob siv cov hydrocarbons, chlorides los yog cov kuab tshuaj zoo sib xws, los yog siv cov tshuaj abrasive.

FUSE REPLACEMENT

Yog hais tias lub fuse tshuab, lub hwj huam mov yuav tsum tsis txhob ua hauj lwm.Rau nrhiav thiab kho qhov ua rau lub tshuab fuse, ces hloov nws nrog ib tug fuse ntawm tib specification.

PRODUCT WARRANTY

1. Cov khoom no tau muab kev pabcuam pub dawb tsis pub dhau ib xyoos txij li hnub ntawm kev yuav khoom.Tshwj tsis yog cov xwm txheej hauv qab no:

A: Tsis muaj daim ntawv pov thawj khoom no

B: Kev ua tsis tiav los ntawm kev siv tsis raug, xws li kev tuav tsis raug thiab kev kho tsis raug, kev hloov kho lossis hloov kho lub cuab yeej.

C: Cov khoom siv tsis raug them los ntawm kev lees paub.

D: Kev puas tsuaj uas tsis tuaj yeem tiv taus xws li dej nyab, hluav taws kub, av qeeg, thiab lwm yam.

2. Cov nqi kho mob raug them rau kev kho uas tshaj lub sij hawm lav, thiab cov nqi kho mob yog muaj lub luag haujlwm ntawm tus neeg siv.
