Tus pas ntsuas kub infrared yuav tsum raug xaiv kom raug
Kev ntsuas kub infrared thev naus laus zis tau ua lub luag haujlwm tseem ceeb hauv kev tswj xyuas cov khoom zoo thiab kev saib xyuas, cov cuab yeej siv online tsis raug kuaj xyuas, kev tiv thaiv thiab kev txuag hluav taws xob hauv peb lub tebchaws. Hauv ob xyoos dhau los, cov ntsuas kub tsis sib cuag infrared tau tsim sai hauv kev siv thev naus laus zis, lawv cov kev ua tau zoo tsis tu ncua, lawv cov peev txheej ntawm daim ntawv thov kuj tau nthuav dav ntxiv, thiab lawv txoj kev lag luam tau nce xyoo ib xyoos. Piv nrog rau kev ntsuas kub ntawm kev sib cuag, kev ntsuas kub infrared muaj qhov zoo ntawm lub sijhawm teb ceev, tsis sib cuag, siv kev nyab xeeb thiab kev pab lub neej ntev. Lub ntsuas suab nrov digital kuj tseem ua lub luag haujlwm hauv kev ntsuas lub suab.
Lub hauv paus ntsiab lus ntawm kev ntsuas sab nraud ntsuas kab ntsuas kub:
Kev nkag siab txog kev ua haujlwm ntawm lub hauv paus ntsiab lus, kev ntsuas kev ua haujlwm, ib puag ncig kev ua haujlwm, kev ua haujlwm thiab kev saib xyuas ntawm tus pas ntsuas kub infrared sab nraud yog pab cov neeg siv xaiv thiab siv lub ntsuas kub infrared kom raug.
Txhua yam khoom uas nws qhov kub thiab txias siab tshaj li qhov xoom yog tas li emitting infrared hluav taws xob hluav taws xob mus rau qhov chaw nyob ib puag ncig. Cov yam ntxwv ntawm hluav taws xob infrared ntawm ib yam khoom - qhov loj ntawm lub zog hluav taws xob thiab nws qhov kev faib tawm los ntawm wavelength - muaj kev sib raug zoo nrog nws qhov kub thiab txias. Yog li, los ntawm kev ntsuas lub zog infrared radiated los ntawm cov khoom nws tus kheej, nws qhov kub thiab txias tuaj yeem txiav txim siab, uas yog lub hauv paus rau kev ntsuas kub ntawm infrared radiation.
Dub lub cev hluav taws xob txoj cai ntawm pyrometer:
Lub cev dub yog lub tshuab hluav taws xob zoo tshaj plaws uas nqus tau tag nrho cov wavelengths ntawm lub zog hluav taws xob, tsis muaj kev xav lossis kev xa tawm ntawm lub zog, thiab muaj qhov emissivity ntawm 1 ntawm nws qhov chaw. Nws yuav tsum tau taw qhia tias tsis muaj lub cev dub tiag tiag hauv qhov xwm txheej, tab sis txhawm rau ua kom pom tseeb thiab tau txais txoj cai kev faib tawm ntawm cov hluav taws xob infrared, tus qauv tsim nyog yuav tsum tau xaiv hauv kev tshawb fawb theoretical, uas yog tus qauv oscillator quantized ntawm lub cev kab noj hniav hluav taws xob tau npaj tseg. los ntawm Jintai Keyi, yog li ntawd Qhov no yog qhov pib ntawm tag nrho cov infrared hluav taws xob txoj kev xav, yog li nws yog hu ua txoj cai ntawm dub lub cev hluav taws xob.
Kev cuam tshuam ntawm emissivity ntawm tus pas ntsuas kub ntawm qhov ntsuas hluav taws xob ntsuas hluav taws xob:
Cov khoom tiag tiag uas muaj nyob hauv qhov yuav luag tsis yog lub cev dub. Tus nqi hluav taws xob ntawm tag nrho cov khoom tiag tiag nyob ntawm tsis yog tsuas yog nyob ntawm qhov hluav taws xob wavelength thiab qhov kub ntawm cov khoom, tab sis kuj yog nyob ntawm hom khoom tsim los ntawm cov khoom, cov txheej txheem kev npaj, txheej txheem thermal, lub xeev saum npoo thiab ib puag ncig. Yog li ntawd, txhawm rau ua kom txoj cai lij choj ntawm lub cev dub hluav taws xob siv tau rau txhua yam khoom siv, ib qho kev faib ua feem coefficient ntsig txog cov khoom siv thiab lub xeev saum npoo yuav tsum tau qhia, uas yog, emissivity. Qhov coefficient no qhia tau hais tias qhov hluav taws xob hluav taws xob nyob ze ntawm qhov khoom tiag tiag yog li cas rau cov hluav taws xob lub cev dub, thiab nws cov nqi yog nyob nruab nrab ntawm xoom thiab tus nqi tsawg dua 1. Raws li txoj cai ntawm hluav taws xob, tsuav yog qhov emissivity ntawm cov khoom paub, Cov yam ntxwv ntawm cov hluav taws xob infrared ntawm txhua yam khoom tuaj yeem paub.
Lub ntsiab tseem ceeb cuam tshuam rau emissivity ntawm infrared ntsuas kub yog:
Khoom hom, nto roughness, lub cev thiab tshuaj qauv thiab cov khoom thickness, thiab lwm yam.
Thaum siv lub ntsuas hluav taws xob hluav taws xob infrared los ntsuas qhov ntsuas kub ntawm lub hom phiaj, nws yog thawj zaug uas yuav tsum ntsuas qhov hluav taws xob infrared ntawm lub hom phiaj nyob rau hauv nws cov band range, thiab tom qab ntawd qhov ntsuas kub ntawm lub hom phiaj ntsuas yog xam los ntawm tus pas ntsuas kub. Monochromatic pyrometers yog proportional rau tus nqi ntawm cov hluav taws xob nyob rau hauv ib tug band: dual-xim pyrometers yog proportional rau tus piv ntawm tus nqi hluav taws xob nyob rau hauv ob bands.
Tus pas ntsuas kub infrared yuav tsum raug coj mus rau qhov kev xaiv ntawm infrared system:

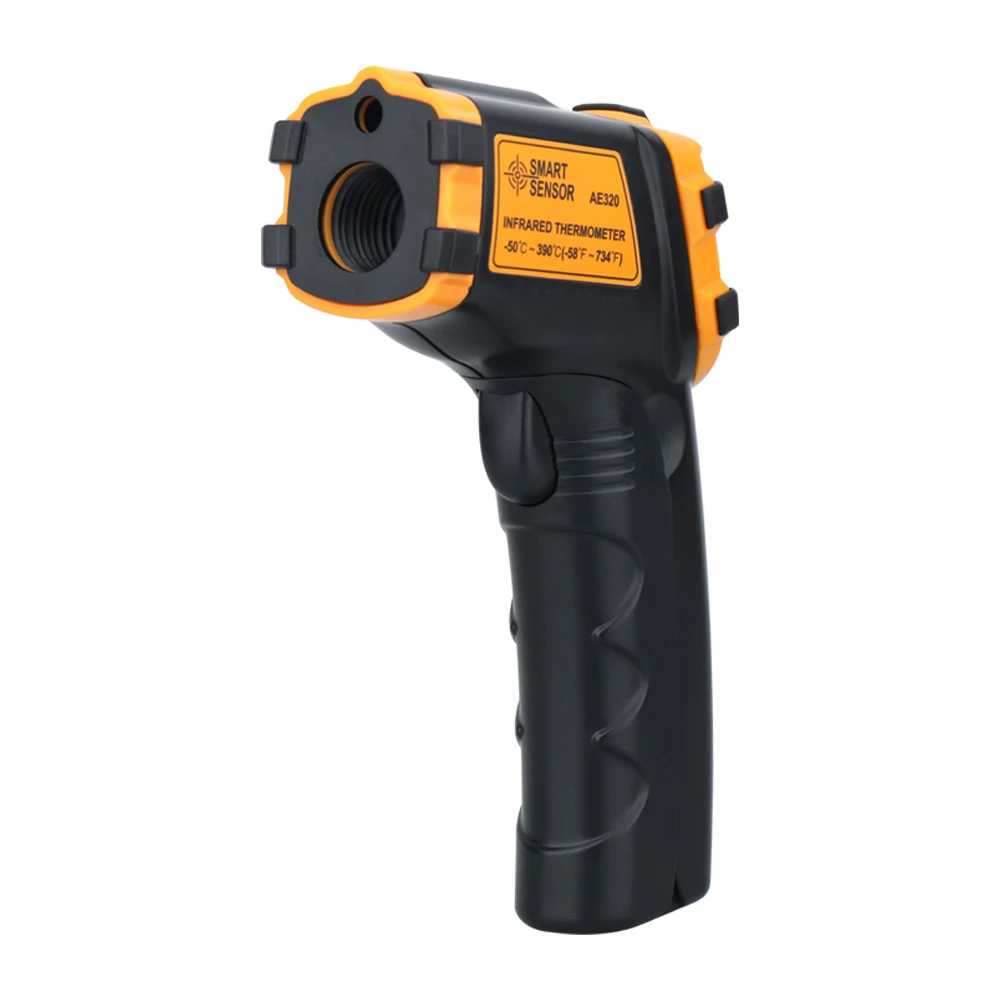

Tus pas ntsuas kub infrared yog tsim los ntawm optical system, photoelectric detector, teeb liab amplifier, teeb liab ua, tso zis tso zis thiab lwm yam. Lub tshuab kho qhov muag sib sau ua ke lub zog hluav taws xob infrared ntawm lub hom phiaj hauv nws qhov kev pom, thiab qhov loj ntawm qhov kev pom yog txiav txim los ntawm qhov chaw kho qhov muag ntawm tus pas ntsuas kub thiab nws txoj hauj lwm. Lub zog infrared yog tsom rau lub photodetector thiab hloov mus rau hauv cov teeb liab hluav taws xob sib xws. Lub teeb liab dhau los ntawm lub amplifier thiab lub teeb liab ua Circuit Court, thiab hloov mus rau hauv tus nqi kub ntawm qhov ntsuas lub hom phiaj tom qab raug kho raws li algorithm ntawm kev kho mob sab hauv ntawm lub ntsuas thiab emissivity ntawm lub hom phiaj.
