Main hom ntawm thickness gauges
Ultrasonic thickness gauge: ultrasonic thickness gauge yog raws li lub hauv paus ntsiab lus ntawm ultrasonic pulse reflection mus nqa tawm thickness ntsuas, thaum lub ultrasonic pulse emitted los ntawm lub sojntsuam los ntawm cov khoom nyob rau hauv kev ntsuam xyuas mus cuag cov khoom interfaces, lub mem tes yog reflected rov qab mus rau lub sojntsuam, los ntawm kev ntsuas ntawm ultrasonic propagation lub sij hawm nyob rau hauv cov khoom los txiav txim lub thickness ntawm cov khoom nyob rau hauv kev sim. Qhov twg ultrasonic yoj tuaj yeem ua rau qhov nrawm nrawm hauv nws qhov kev nthuav tawm sab hauv ntawm ntau yam ntaub ntawv tuaj yeem ntsuas tau siv txoj cai no.
Nyias zaj duab xis thickness gauge: siv los txiav txim lub thickness ntawm zaj duab xis, daim ntawv thiab lwm yam ntaub ntawv, dav kev ntsuas ntau yam, siab precision ntsuas, nrog cov ntaub ntawv tso zis, txhua txoj hauj lwm xoom, metric hloov dua siab tshiab, tsis siv neeg lub hwj chim tawm thiab lwm yam ntxwv.
Laser thickness gauge: yog siv laser reflection txoj cai, raws li lub teeb txiav txoj kev ntawm kev ntsuas thiab kev soj ntsuam ntawm mechanical manufacturing qhov chaw ua deg micro-geometry los ntsuas cov thickness ntawm cov khoom, yog ib tug uas tsis yog-hu rau dynamic ntsuas ntsuas. Nws tuaj yeem ncaj qha tso tawm cov teeb liab digital thiab cov khoos phis tawj muaj kev sib txuas, thiab ua cov ntaub ntawv sai sai thiab cov txiaj ntsig sib txawv rau ntau yam khoom siv.
X-ray Thickness Gauge: Nws yog ib qho tsis sib cuag dynamic ntsuas ntsuas los ntsuas qhov tuab ntawm cov khoom siv los ntawm kev siv cov yam ntxwv uas qhov kev hloov ntawm qhov siv ntawm X-ray muaj feem xyuam rau cov thickness ntawm cov khoom thaum X-ray. nkag mus rau cov khoom ntsuas. Nws siv PLC thiab lub khoos phis tawj ua haujlwm ua lub hauv paus, sau cov ntaub ntawv suav thiab tso tawm cov txiaj ntsig sib txawv rau lub zeb tuab tswj qhov system kom ua tiav qhov xav tau dov tuab. Daim ntawv thov kev lag luam tseem ceeb: cov ntawv tsis-ferrous hlau thiab ntawv ci, metallurgical daim ntawv kev lag luam thiab kev ua cov sawb.
Daim ntawv thickness gauge: haum rau ntsuas lub thickness ntawm ntau yam films, ntawv, cardboard thiab lwm yam ntaub ntawv hauv qab no 4 hli.
Haum rau kev ntsuas lub thickness ntawm cov hlau (xws li hlau, cam khwb cia hlau, txhuas, tooj liab, thiab lwm yam), plastics, ceramics, iav, iav fiber ntau thiab lwm yam ultrasonic zoo conductor.
X-ray thickness gauge: haum rau zus tau tej cov txhuas phaj, tooj liab phaj, steel phaj thiab lwm yam metallurgical cov ntaub ntawv rau cov khoom ntawm lub enterprise, yuav tsum matched nrog dov zeb, thov rau kub dov, casting, txias dov, ntawv ci dov. . Ntawm lawv, x-ray thickness ntsuas kuj siv tau rau txias dov, ntawv ci dov thiab ib feem ntawm cov txheej txheem kub dov zeb ntau lawm rau kev tswj tsis siv neeg phaj thickness.

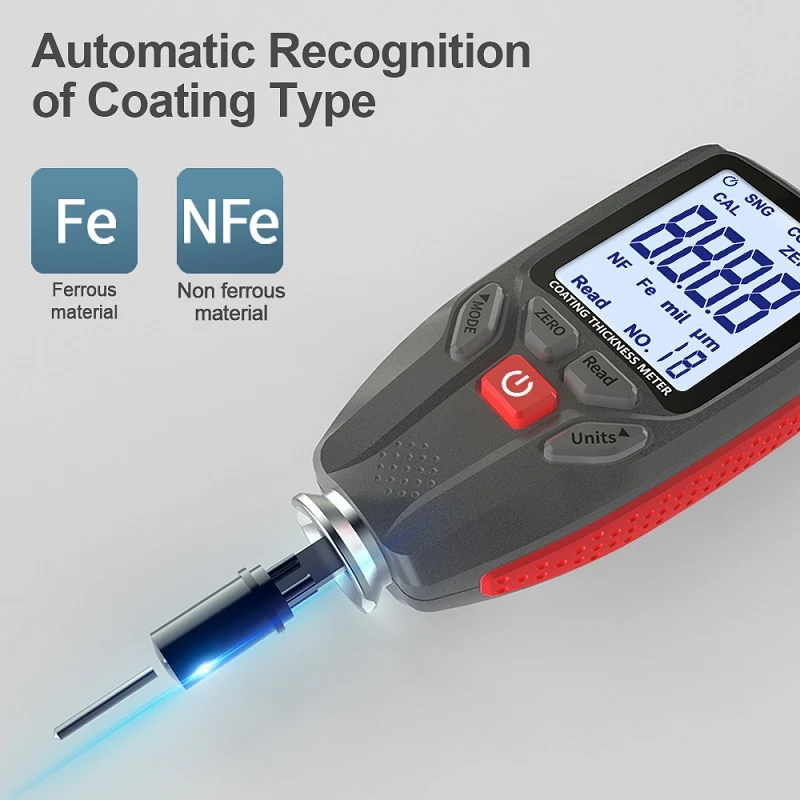

Txheej thickness gauge: F-hom sojntsuam ncaj qha ntsuas lub thickness ntawm cov uas tsis yog-coj txheej txheej nyob rau saum npoo ntawm magnetically conductive cov ntaub ntawv (xws li steel, npib tsib xee) (xws li: xim, yas, enamel, tooj liab, txhuas, zinc, chromium. , thiab lwm yam). Nws tuaj yeem siv rau kev ntsuas thickness ntawm electroplating txheej, pleev xim txheej, txheej txheej txheej, txhuas pobzeb, tooj liab pobzeb, pasteurized alloy pobzeb, phosphating txheej, ntawv, thiab kuj tuaj yeem siv rau kev ntsuas thickness ntawm hull xim thiab adhesion ntawm underwater structural. ntu.
