Network Cable Hlau Tracker

GVDA Hlau Tracker Network Cable Tester LAN Xov tooj Hlau Tracker Diagnose Tone Tracer RJ45 RJ11 Multifunctional Cable Detector Kab Finder



Khoom nta

Kab nrhiav kev ua haujlwm

Alignment muaj nuj nqi

Network kab rau kab ua haujlwm

Transmitter low voltage prompt muaj nuj nqi

Kev kaw qeeb tom qab 30 feeb yam tsis muaj kev ua haujlwm

Lub mloog pob ntseg muaj nuj nqi

Sensitivity adjustable muaj nuj nqi

Teeb pom kev ua haujlwm

Khoom Paub meej

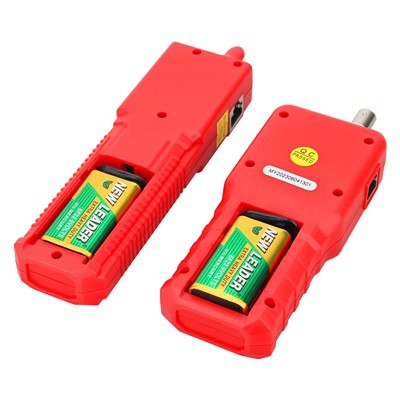

Fais fab mov: DC 9V laminated roj teeb (tsis suav nrog)

Max ua hauj lwm tam sim no: transmitter Tsawg dua los yog sib npaug rau 20mA, receiver Tsawg dua los yog sib npaug rau 30mA

Hom ntawv kis tau tus mob: multifrequency mem tes

Cov zis tawm theem: 8Vp-p

Teeb liab nrug: Ntau tshaj lossis sib npaug li 3km

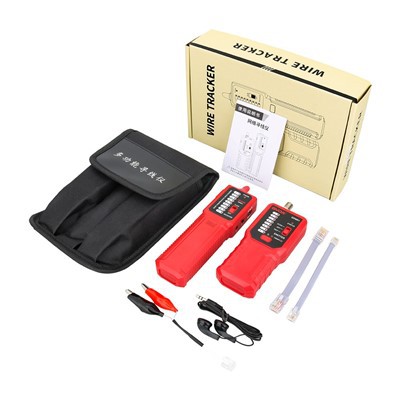

Ntim cov ntsiab lus

1 * Transmitter

1 * Txais

1 * RJ45 adapter cable

1 * RJ11 adapter cable

1 * Alligator clip

1 * Lub mloog pob ntseg

1* Tas

1 * Lub thawv

1 * Phau ntawv



Network Cable Hlau Tracker

Nrog kab nrhiav thiab Alignment muaj nuj nqi





Network kab rau kab ua haujlwm

1.lf cov hlua hluav taws xob yog qhov tseeb, lub teeb pom kev ntawm lub teeb pom kev thiab lub teeb pom kev ntawm lub receiver yog illuminated ib qho los ntawm ib qho ntawm 1 mus rau 8 thiab lub voj voog.
2.Thaum lub network cable raug txiav, piv txwv li, thaum lub network cable raug txiav, ntsuas 2 thiab 3 ntawm lub transmitter, txais yuav raug kaw.
3.Thaum lub network cable yog luv luv, piv txwv li, 2 thiab 3 yog luv-circuited, No. 2 thiab 3 qhov taw qhia teeb ntawm lub receiver raug kaw, thiab qhov taw qhia teeb ntawm lub transmitter yog illuminated ib tug los ntawm ib tug ntawm 1 mus rau 8 nyob rau hauv ib lub voj voog, cov 2 thiab 3 yog illuminated (flash dazzling).

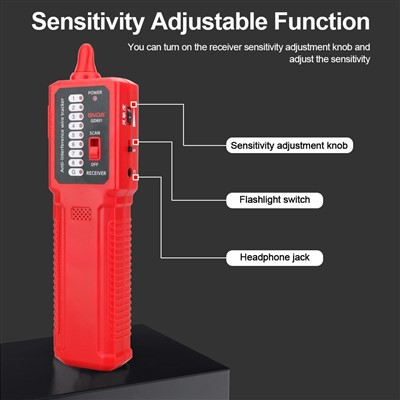

Sensitivity Adjustable Function

koj tuaj yeem qhib lub receiver rhiab heev adjustment knob thiab kho qhov rhiab heev





Breakpoint Detection

Lub receiver sojntsuam nyob ze ntawm lub xaim, yog tias lub suab "drip drip" yog qhov qub, txav mus rau hauv cov hlau, yog tias lub suab nres tam sim ntawd, nws txhais tau tias

txoj kab ntawd raug txiav tawm ntawm no.

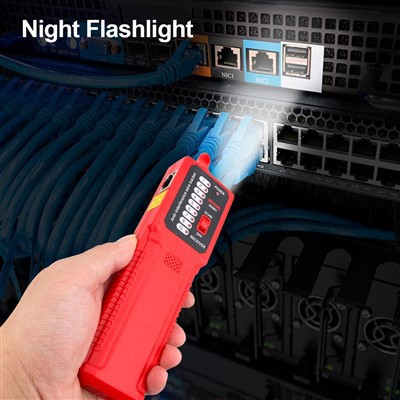

Hmo ntuj teeb

Haum rau kev ua haujlwm hauv qhov chaw tsaus.







Pob npe:
1 * Txais / 1 * Emitter / 1 * Clip Kab / 2 * Network Cable / 1 * Tool Bag



Txhawm rau kom tsis txhob muaj hluav taws xob poob lossis raug mob ntawm tus kheej,
ua raws li cov lus qhia no:
1. Tsis txhob nrhiav ncaj qha rau cov cables uas tau txuas nrog hluav taws xob muaj zog (xws li cov kab hluav taws xob hauv koj lub tsev); txwv tsis pub, kev raug mob thiab khoom puas tsuaj yuav tshwm sim.
2. Ua tib zoo saib xyuas kev tiv thaiv xob laim thaum siv lub cuab yeej thaum muaj cua daj cua dub kom tsis txhob raug mob ntawm cov neeg ua haujlwm thiab cov khoom siv
kev puas tsuaj los ntawm xob laim induced los ntawm kab.
3. Yog tias qhov ntsuas ntsuas thiab ntu ntu ntawm cov kab nrhiav tau blinking tib lub sijhawm, lub roj teeb voltage tsawg. Hloov lub roj teeb.
4. Thaum koj tsis siv cov khoom no rau lub sijhawm ntev, thov tshem lub roj teeb kom tsis txhob muaj cov dej ntws tawm ntawm lub roj teeb thiab corrosion ntawm lub roj teeb, uas ua rau kev sib cuag tsis zoo.
5. Tsis txhob qhib rooj plaub ntawm lub siab nyiam, yog tias muaj kev txhaum, thov kev saib xyuas kev tshaj lij
