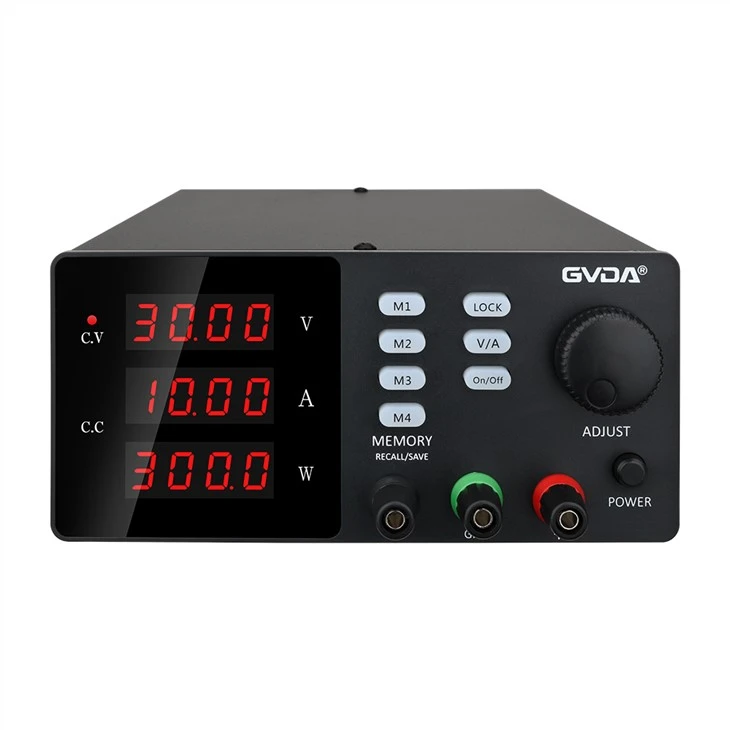

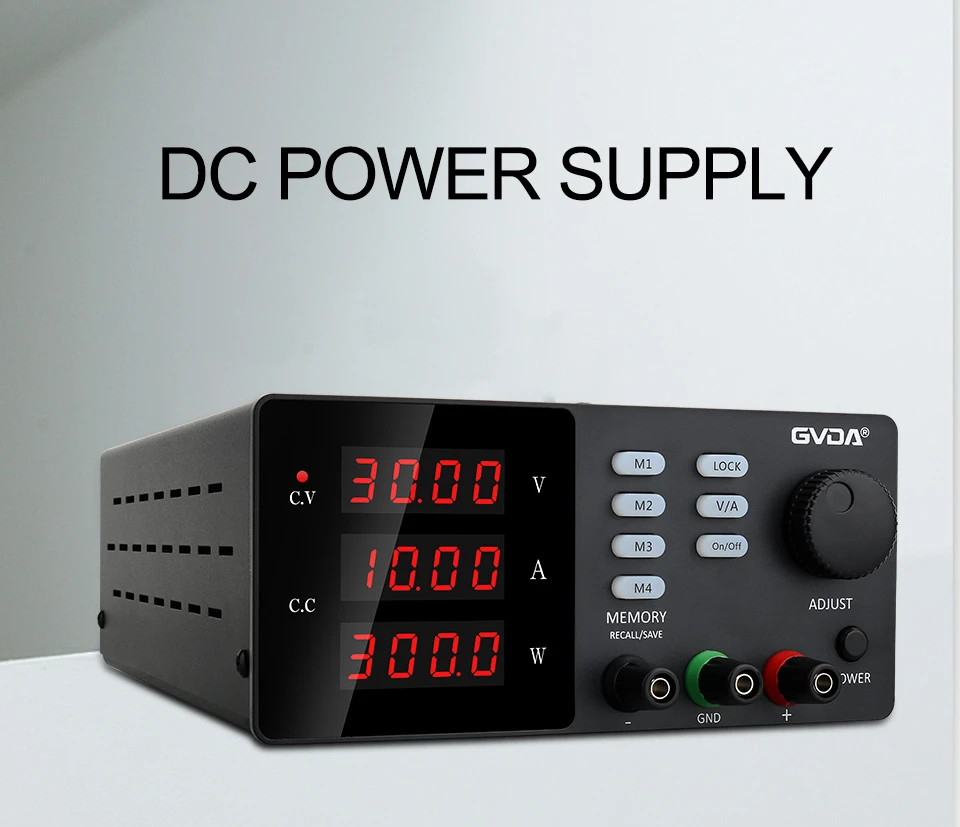

Programmable Memory Function DC Power Supply
GVDA 30V 5A 10A 60V 5A 200V 300V 1A Programmable DC Power Supply Adjustable High Precision Memory Function Switching Regulated Power Supply
Hauj lwm lawm
GVDA 30V 5A 10A 60V 5A 200V 300V 1A Programmable DC Power Supply Adjustable High Precision Memory Function Switching Regulated Power Supply
Highlights nta
HIGH raug nrog yooj yim tswj INTERFACE
MPU micro-system, encoded-tswj nplua & coarse hloov pob qhov paub tseeb tsis yog siab precision tab sis kuj siab tseeb. Featured keyboard xauv muaj nuj nqi, 4 digitals LED zaub (0.
STORAGE THIAB RECALL MEMORY FUNCTION
Nta 3 nyees khawm nrog Cia thiab nco nco muaj nuj nqi. Yooj yim cia lossis rov qab siv tam sim no / voltage tsuas yog nias lub pob. Txhawb nqa tsis tu ncua tam sim no (CC) thiab tsis tu ncua Voltage (CV) hom.
EXTRA COMPACT & PORTABLE
Nrog lub hwj chim hloov muaj nuj nqi thiab tam sim no tso zis khawm, lub rooj zaum fais fab mov yog zoo suited rau lub chaw soj nstuam, tsev kawm ntawv, hluav taws xob tu, diy electronics, amateur, haum rau lab & industrial siv.
YUAV TSUM TAU TXAIS
FCC & CE tau ntawv pov thawj cov khoom. Ua-hauv OCP (Kev Tiv Thaiv Tam Sim No), OVP (Kev Tiv Thaiv Tshaj Tawm), thiab tiv thaiv luv luv. Tshwj xeeb sab laug & sab xis vents thiab sab hauv kiv cua kom tiv thaiv overheating.
Tech. Paub meej
Programmable Memory muaj nuj nqi DC Power Supply
| Cov khoom | Cov lus qhia tshwj xeeb |
| Qauv Lub Npe | GD-E305 GD-E3010 GD-E605 GD-E1203 GD-E2001 GD-E3001 |
| Cov zis hluav taws xob | 0-30V 60V 120V 200V 300V |
| Tso zis tam sim no | 0-5A 10A 3A 1A |
| Tso zis zog | 150W 300W 360W 200W |
| Input voltage | 230V ± 10% 50Hz lossis 115V ± 10% 50Hz |
| Ua haujlwm kub | Ua haujlwm kub: 0 degree -40 degree ; txheeb ze humidity:<> |
| Cia kub | -10 degree -70 degree ; txheeb ze humidity:<> |
| Cov ntaub ntawv khaws cia muaj nuj nqi | Plaub pawg ntawm voltages thiab tam sim no tuaj yeem khaws cia |
| Tsis tu ncua voltage State | Voltage stability: 0.1% ± 3mV |
| Tsawg Voltage:0.2-0.3 feem pua ntxiv rau 3mV | |
| Load stability: 0.5 feem pua ± 3mV | |
| Ripple suab tsawg dua los yog sib npaug li 30mVrms | |
| 0 mus rau qhov ntsuas voltage tsis tu ncua adjustable | |
| Lub Xeev Tam Sim No | Kev ruaj ntseg tam sim no: 0.2 feem pua ntxiv rau 3mA |
| Load stability: 0.2% ± 3mA | |
| Ripple nrov tsawg dua los yog sib npaug rau 20mArms (Tus nqi siv tau) | |
| Lub sijhawm rov qab: Tsawg dua lossis sib npaug rau 500μS | |
| Kub coefficient: Tsawg dua los yog sib npaug rau 100ppm / degree | |
| 0 rau qhov ntsuas tam sim no tsis tu ncua adjustable | |
| Zaub | Zaub loj: 5.3cm * 4.8cm |
| Lub vijtsam hom: LCD npo (Tshuaj lub qhov muag 24 teev ua haujlwm) | |
| Kev pom tseeb: 0.5 feem pua ± 2 tus lej | |
| Zaub daws teeb meem voltage: 0.01V | |
| Kev daws teeb meem tam sim no: 0.001A | |
| Zaub daws teeb meem zog: 0.001W | |
| Khoom loj | Ntev 25.2cm x Dav 17cm x Siab 8.4cm |
| Net nyhav | 1.2 Kg |
| Fuse txheem | 3.15A (AC 230V inpute), 5A (AC 115V inpute) |
| Khoom xim | Dawb / Dub |
| Built-in cua txias kiv cua | Ntse tig rau thaum kub tshaj 50 degree |
| Ntim Cov Ntsiab Lus | 1X DC fais fab mov 1X Fais Adapter (EU / AU / UK / US peb yuav xa 1 raws li koj lub teb chaws) 1X Dub Output Kab 1X Liab Output Kab 1X Phau Ntawv Qhia (English) 1X Pakcgae Box (Hard) 2X daim txhuam cev tiv thaiv |
Khoom Qhia
Programmable Memory muaj nuj nqi DC Power Supply
Xauv lub vaj huam sib luag pem hauv ntej
Nias "Xauv", lub teeb lub teeb yog nyob rau, tag nrho cov nyees khawm thiab pob qhov rooj ua haujlwm tshwj tsis yog rau / tawm yuav raug kaw, thiab nias "lock" dua, yuav tso lub xauv.
Kub tswj kiv cua
Cov kiv cua txias yuav pib ua haujlwm thaum qhov kub siab tshaj 50degree
M1 M2 M3 M4 Plaub pawg ntawm cov ntaub ntawv khaws cia
Nias lub M1 rau M4 lub khw / nco qab khawm, qhov taw qhia teeb pom kev, rov qab cov ntaub ntawv khaws cia, thiab nias nws dua kom ua tiav qhov chaw cia
Yuav ua li cas kho qhov tam sim no yam tsis muaj Load?
Lus nug & Teb
Q 1: Lub pob qhov rooj tam sim no tau tig, vim li cas tsis tuaj yeem hloov kho tam sim no?
A 1: Koj yuav tsum txuas lub load thiab qhov teeb tsa hluav taws xob tsis tuaj yeem yog 0, thiab tom qab ntawd hloov tam sim no
Q 2: Vim li cas lub tshuab cua txias tsis ua haujlwm?
A 2: Peb tau teeb tsa lub kiv cua txias txias nrog lub ntsuas kub ua haujlwm uas tig rau thaum
kub nce mus txog 50 degrees Celsius.
Q 3: Kuv tsis tuaj yeem xaiv qhov input voltage 220V lossis 110V? Thiab EU / AU / US / UK plug?
A 3: Peb yuav xa cov khoom sib xws thiab ntsaws raws li koj lub teb chaws, yog tias koj muaj
kev xav tau tshwj xeeb, thov hu rau peb, peb yuav xa cov khoom raug rau koj.
Q 3: Kos rau ntawm qhov screen?
A 3: Muaj cov yeeb yaj kiab tiv thaiv ntawm qhov screen uas tuaj yeem rub tawm.
